Checkpoints

The Role of Checkpoints in Game Design

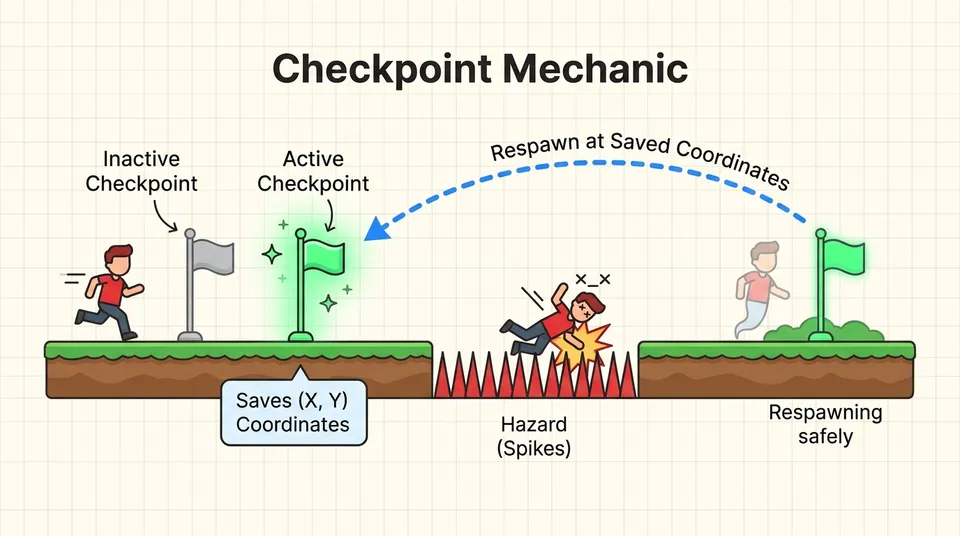

In 2D platformer development, game pacing and the player frustration curve are closely tied to the distance between failing and resuming gameplay. Forcing a player to restart an entire ten-minute level after mistiming a single jump makes the experience punishing and exhausting. Checkpoints serve as temporary save points held in the game's active memory that preserve progress, allowing the character to respawn at a safe location near their latest achievement.

From an architectural standpoint in GameMaker, a checkpoint does not necessarily require saving files to disk (a topic usually reserved for persistent save files). In its purest and most efficient form for individual levels, it simply remembers the spatial `(x, y)` coordinates of a validated zone within the current room, while resetting certain player vitals such as residual velocity and hit points. In this lesson, you will build this system from scratch using GML Code, integrating it cleanly with the health and collision mechanics developed in earlier lessons.

Technical Strategy: Where and How to Store Coordinates?

For the respawn position to persist even when the `obj_player` instance is destroyed, reset, or repositioned suddenly, the saved coordinates must not depend solely on the player's own lifecycle. If a player dies and their instance is destroyed (`instance_destroy()`), all of their local and instance variables vanish from GameMaker's memory. There are two primary professional approaches to handle this in beginner and intermediate projects: using global variables accessible from any entity, or employing a persistent controller object (`obj_game_controller`).

In our project, we will use global variables (`global.checkpoint_x` and `global.checkpoint_y`). This approach is straightforward, requires minimal boilerplate code, remains easy to read for beginners, and allows checkpoint objects (`obj_checkpoint`), hazard zones, and the player instance to inspect and update these values at any point in the game loop.

💡 Remember: variables prefixed with 'global.' exist within GameMaker's virtual machine global context. Unlike variables declared with 'var' (temporary to their code block) or unprefixed instance variables (bound to the current instance), global variables retain their values across event executions and instance destructions.

Designing the Visual Asset: Creating spr_checkpoint

To give players intuitive feedback that they have reached a safe spot, the checkpoint must provide an immediate visual response. We will create a dedicated sprite—such as a mystical totem, a flag, or a sci-fi beacon—with at least two visual states: inactive and activated.

Open GameMaker's Asset Browser, right-click your sprites folder, and choose Create -> Sprite. Name it `spr_checkpoint`. Set its size to 32x32 or 32x64 pixels depending on your player's scale. Draw or import two sub-images (frames): frame 0 represents the inactive checkpoint or lowered flag (grey or red), while frame 1 represents the active checkpoint or raised flag (bright green or glowing blue). Make sure to set the Origin to 'Bottom Center', ensuring the base of the object aligns flush with the floor tiles in your room.

Programming the obj_checkpoint Object

Now let's create the interactive object in the Asset Browser: Create -> Object, naming it `obj_checkpoint` and assigning it `spr_checkpoint`. This object must detect player contact, activate its visual state, avoid redundant re-activations, and optionally deactivate previous checkpoints if you want sequential save behavior.

We begin by configuring its Create event to initialize its internal state. Here, we freeze animation on the inactive frame using the built-in variable `image_speed`.

// Object: obj_checkpoint
// Event: Create

// Checkpoint starts inactive and without looping animation
is_active = false;
image_speed = 0;
image_index = 0;

Next, we handle player interaction. This can be done via a dedicated Collision event with `obj_player` or by checking for overlaps in the checkpoint's Step event with `place_meeting()`. A dedicated collision event is clean, performant, and beginner-friendly. Add a Collision -> Objects -> `obj_player` event to `obj_checkpoint` and insert the following code:

// Object: obj_checkpoint
// Event: Collision with obj_player

// Only trigger if this checkpoint hasn't been activated yet
if (!is_active)
{
    // Visually deactivate all other checkpoints in the room for consistency
    with (obj_checkpoint)
    {
        is_active = false;
        image_index = 0;
    }

    // Activate this specific checkpoint
    is_active = true;
    image_index = 1;

    // Store this checkpoint's position as the latest global safe position
    // We use the checkpoint's (x, y) coordinates, aligned with its base
    global.checkpoint_x = x;
    global.checkpoint_y = y;

    // Console debug message
    show_debug_message("Checkpoint activated at X: " + string(global.checkpoint_x) + ", Y: " + string(global.checkpoint_y));
}

Let's examine the `with (obj_checkpoint)` statement. The `with` statement in GML iterates through every existing instance of that object type in the room. Running this forces every flag back to its inactive frame (`image_index = 0`), before the collided instance sets its own `is_active = true` and switches to `image_index = 1`. This guarantees that only one checkpoint is active at any time, eliminating ambiguity in the game world.

Global Initialization and Default Safe Position

A common pitfall when implementing checkpoints is assuming the player will always touch one before dying. If the player falls down a pit or collides with an enemy in the opening stretch of a level before reaching an `obj_checkpoint`, the engine will attempt to read `global.checkpoint_x` and `global.checkpoint_y`. If these variables have not been declared yet, GameMaker will halt execution with an 'unrecognized variable' fatal error.

To prevent this crash, we must initialize the global variables with the player's initial room position. The ideal place to do this is in the Create event of an initialization or controller object (`obj_game_controller`), or temporarily inside the Create event of `obj_player` when the room loads:

// Object: obj_player
// Event: Create (add at the end of your existing movement variables)

// If global checkpoint variables do not exist yet in this session, define them
if (!variable_global_exists("checkpoint_x"))
{
    global.checkpoint_x = x;
    global.checkpoint_y = y;
}

The `variable_global_exists()` function checks whether a global variable of that name has been registered in memory. When the level boots up for the first time, GameMaker finds that it does not exist and saves the player's starting coordinates (`x` and `y` where the instance was placed in the room) as the default fallback. Once the player touches a checkpoint flag, those globals will already exist with updated values, so this block will not overwrite saved progress.
