Sprite State Management and Sub-Images in GameMaker

Introduction: Connecting Physics with Visual Feedback

Up to this point in the course, our main character features a solid movement system: it responds to keyboard inputs, calculates horizontal acceleration, applies gravity, and detects precise collisions against floors and walls. However, on screen, the character can look stiff or incomplete if its visuals do not reflect its mechanical state. A character sprinting at top speed with a static idle drawing, or legs churning mid-air while falling, immediately breaks player immersion.

In GameMaker, an instance's graphical presentation is governed by Sprite assets and a set of built-in variables specifically designed to determine which frame renders and how fast it plays. In this lesson, you will take full control of the animation engine using GML Code (GameMaker Language). You will learn how to break down animations into sub-images, avoid visual desyncs during state transitions, and tie playback speed directly to the physics variables calculated in previous modules.

Anatomy of a GameMaker Sprite: Sub-Images and Playback Speed

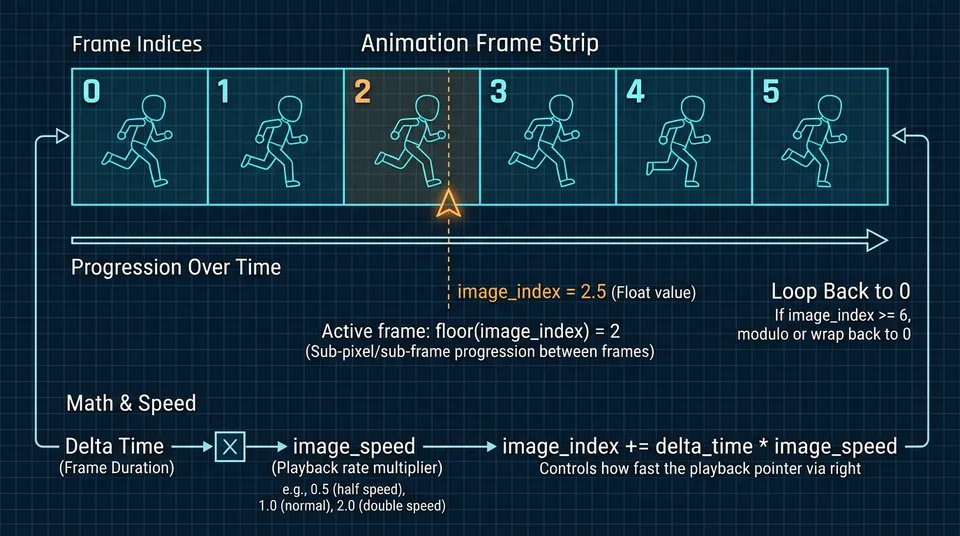

A Sprite in GameMaker is rarely just a single still picture. In most 2D games, it consists of a sequential strip of frames known technically as 'sub-images'. Each sub-image represents an individual pose in an animation sequence, indexed using a zero-based numbering system. If a run sprite contains 6 frames, its numerical indices run strictly from 0 to 5.

Inside GameMaker's Sprite Editor, each asset has two primary configuration settings that define its default behavior: the sprite origin (which we set to 'Bottom Centre' for our platformer to ensure reliable ground alignment) and the base animation speed (typically defined as 'Frames per Second' or FPS, such as 12 or 15 FPS). While these settings are initially configured visually in the editor, their real power comes from manipulating them dynamically through code at runtime.

Essential Built-In Animation Variables in GML

Every instance placed in a room automatically inherits a collection of built-in variables that communicate with the graphics engine on every step of the game loop. The four indispensable variables controlling our animations are detailed below:

It is critical to realize that 'image_index' is not a simple integer jumping abruptly from 0 to 1 and then 2 each game step. Because a game typically runs at 60 steps per second (Room Speed / Game Speed) while a sprite animation might be set to 10 or 12 FPS, GameMaker adds a fractional decimal to 'image_index' every step (for instance, adding 0.2 per step). The renderer draws only the floored integer value, but this internal floating-point counter ensures smooth playback at the specified rate regardless of the engine's global frame rate.

💡 Golden rule: Never attempt to set 'image_number' in code. It is a strictly read-only variable reflecting the total frames created in the asset editor. Attempting to assign a value to it will trigger a runtime error.

The Classic Sprite Switching Pitfall and How to Fix It

A very common bug among beginner developers happens when switching an instance's sprite between idle ('spr_player_idle') and running ('spr_player_run'). Suppose 'spr_player_idle' has 4 frames (indices 0 to 3) and 'spr_player_run' has 8 frames (indices 0 to 7). If your step code executes 'sprite_index = spr_player_run' every frame the player holds right, GameMaker retains the accumulated value of 'image_index'.

If the transition occurs while 'image_index' is at 3.8, the new run cycle abruptly starts midway through its motion. Even worse: transitioning from a 10-frame attack at index 8 down to a 2-frame idle sprite causes 'image_index' to briefly exceed the target sprite's valid frame range, leading to visual flickering until the engine wraps the counter back to zero.

To prevent this issue, always check whether the current sprite already matches the target asset before assigning it. If it does not, swap the sprite and reset 'image_index = 0' immediately, guaranteeing every animation begins cleanly on its first frame.

// Safe check before switching sprites
if (sprite_index != spr_player_run)
{
    sprite_index = spr_player_run;
    image_index = 0;
}

Syncing Animation Speed with Movement Physics

In many classic retro titles, run animations loop at a single fixed speed. However, if your character uses gradual acceleration and deceleration (as implemented in Module 4), running the animation at full cadence while the player is barely starting to move creates 'foot skating': the character's feet move noticeably faster than the ground passes beneath them.

We can eliminate this by dynamically modulating 'image_speed' based on the player's actual horizontal speed ('hsp'). Calculating the ratio of current horizontal speed to maximum movement speed ('move_speed_max') yields a scaling factor that adjusts step cadence naturally.

Manual Frame Control: Jumping and Falling

Airborne states require a different approach. In standard platformers, jumping is rarely a long, looping sequence; instead, it is split into a distinct upward rise pose and an open falling pose. Developers commonly package both poses into a single asset ('spr_player_jump') containing two sub-images: sub-image 0 for ascending and sub-image 1 for falling.

To manage this directly, set 'image_speed = 0'. This halts automatic frame advancement, allowing you to explicitly dictate which sub-image displays based on the sign of the vertical velocity ('vsp').

// Manual airborne frame control
if (!grounded)
{
    sprite_index = spr_player_jump;
    image_speed = 0; // Freeze automatic frame progression

    if (vsp < 0)
    {
        // Character is ascending
        image_index = 0;
    }
    else
    {
        // Character reached peak apex and is falling
        image_index = 1;
    }
}
