Mechanic Polish (Juice) and Visual Feedback

Introduction to "Juice" and Game Feel

In game development, there is a crucial distinction between a mechanic that works and a mechanic that feels good. A character can run, jump, and collide with strict mathematical precision according to rules programmed in earlier modules; however, without immediate sensory feedback, the player will perceive controls as stiff, wooden, or disconnected. In indie game development, the term "Juice" refers to all the layers of visual, auditory, and temporal feedback added on top of a functional mechanic to maximize tactile and visual pleasure when interacting with the virtual world.

"Game Feel" does not alter the fundamental rules of the game's physics, but rather how those rules are communicated and how the imperfections of the human player are accommodated. When a character jumps, they shouldn't just shift their vertical position: the ground should emit dust particles, the character's body should compress before launch and stretch in the air, the camera can react with a subtle micro-shake on hard impacts, and the game should provide a slight margin of error if the user presses the button a few milliseconds too early or too late. In this lesson, we will cover full-spectrum polish for our 2D platformer in GameMaker, ensuring that every movement conveys weight, punch, and satisfaction.

Input Tolerance: Coyote Time and Jump Buffering

In a strict physics engine, if a character stops touching the ground for even a single frame (such as walking off the edge of a cliff into open air), the grounded flag instantly switches to false, disabling the jump command. To the human brain and visual refresh rates, this often feels like an unfair glitch: the player believes they pressed the button while still on the ledge, but the engine already registered a free fall. To resolve this, we implement two universal input tolerance mechanics: Coyote Time and Jump Buffering.

"Coyote Time" (named after the cartoon coyote who runs on air for a moment before falling) allows the player to jump during a small grace window (typically 5 to 8 frames at 60 FPS) after walking off a solid surface without jumping. Conversely, "Jump Buffering" caches a jump press in memory if the player hits the button in mid-air right before touching down (within a similar 5-to-8-frame window), automatically triggering the jump on the exact frame the character makes contact with the platform.

// Object: obj_player
// Event: Create

// Base movement variables (already existing)
hsp = 0;
vsp = 0;
grav = 0.4;
walk_spd = 3.5;
jump_spd = -7.5;
grounded = false;

// Input tolerances (Juice: Control Feel)
coyote_max = 6;         // Grace frames after leaving the ground
coyote_timer = 0;       // Countdown timer for late jumps

buffer_max = 6;         // Frames to remember the jump press
buffer_timer = 0;       // Countdown timer for early jumps

In the player's Step event, we update these timers frame by frame before evaluating jump logic. If the player is on the ground (`grounded == true`), we reset the Coyote Time counter to its maximum value. Otherwise, we decrement the counter by 1 each step. For the Jump Buffer, whenever we detect a jump button press, we set `buffer_timer` to its maximum value. The jump will only fire if both margins align favorably.

// Object: obj_player
// Event: Step (Timer handling and jump logic section)

// 1. Read jump input
var _key_jump = keyboard_check_pressed(vk_space) || gamepad_button_check_pressed(0, gp_face1);

// 2. Manage Coyote Time
if (grounded) {
    coyote_timer = coyote_max;
} else {
    if (coyote_timer > 0) coyote_timer--;
}

// 3. Manage Jump Buffering
if (_key_jump) {
    buffer_timer = buffer_max;
} else {
    if (buffer_timer > 0) buffer_timer--;
}

// 4. Execute jump using tolerances
if (buffer_timer > 0 && coyote_timer > 0) {
    vsp = jump_spd;
    buffer_timer = 0;   // Consume buffer immediately to prevent repeated jumps
    coyote_timer = 0;   // Consume coyote grace window
    grounded = false;
}

With these few lines of code, the jump feel improves dramatically. Players will no longer suffer frustrating falls when pushing jumps to the edge of ledges, nor will they lose momentum when attempting to chain bunny hops upon landing.

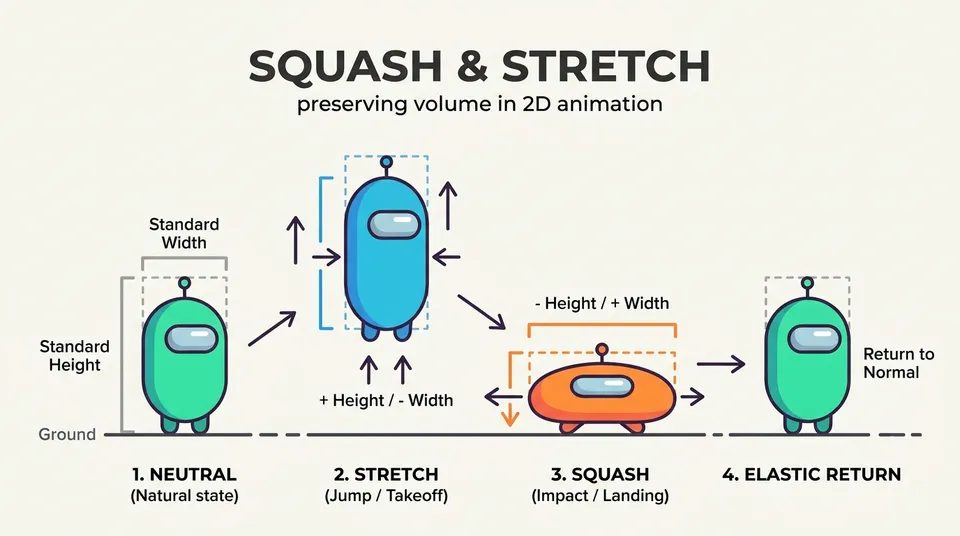

Elastic Deformation: Squash and Stretch

The classic animation principle known as Squash and Stretch is essential for giving mass, elasticity, and life to a 2D body. When an organic body collides forcefully with the ground, it flattens and widens horizontally (Squash) to dissipate kinetic energy; conversely, when accelerating upward or falling at high speeds, it elongates vertically and narrows horizontally (Stretch).

In GameMaker, modifying `image_xscale` and `image_yscale` directly for visual effects introduces a critical risk: if the instance's collision mask depends on the sprite scale, altering these properties modifies the character's physical bounding box, causing them to get stuck inside walls or the floor. The professional, safe solution is to leave native scale variables intact for physics and define custom variables strictly dedicated to visual rendering in the Draw event.

// Object: obj_player
// Event: Create

// Visual deformation variables independent of physical collision
x_scale_display = 1.0;
y_scale_display = 1.0;

// Helper variable to detect exact ground impact
was_grounded = true;

In the Step event, we detect the exact frame the character jumps and the exact frame they touch down after falling. When either happens, we inject asymmetric values into `x_scale_display` and `y_scale_display`. Then, on every frame, we use the linear interpolation function `lerp()` to gradually return these values to their neutral 1.0 scale.

// Object: obj_player
// Event: Step (Squash and Stretch section)

// Detect jump to stretch character vertically (Stretch)
if (buffer_timer == 0 && coyote_timer == 0 && vsp == jump_spd) {
    x_scale_display = 0.7; // Narrows horizontally
    y_scale_display = 1.3; // Stretches upward
}

// Detect ground impact (Squash)
if (!was_grounded && grounded) {
    // Impact compresses character against the floor
    x_scale_display = 1.35;
    y_scale_display = 0.65;
}

// Store grounded state for the next step
was_grounded = grounded;

// Continuous elastic return toward neutral scale (1.0)
x_scale_display = lerp(x_scale_display, 1.0, 0.15);
y_scale_display = lerp(y_scale_display, 1.0, 0.15);

💡 Remember that `lerp(a, b, amt)` nudges 'a' toward 'b' by percentage 'amt' each frame. With an amount of 0.15, the deformation smoothly bounces back without requiring complex harmonic oscillator formulas.

To render this deformation without disrupting physical colliders, we override the default rendering inside the player's Draw event. We call `draw_sprite_ext()`, multiplying the horizontal facing direction (`facing`, holding 1 or -1 for right or left) by our custom scale.

// Object: obj_player
// Event: Draw

// Ensure obj_player sprite origin is set to 'Bottom Centre'
// so that deformation anchors to the feet rather than hovering mid-air.

draw_sprite_ext(
    sprite_index,
    image_index,
    x,
    y,
    facing * x_scale_display,
    y_scale_display,
    0,
    c_white,
    image_alpha
);

Camera Shake (Screen Shake)

Screen shake is one of the most effective ways to communicate impact, weight, and kinetic energy. Slamming into an obstacle, landing from a high fall, or defeating an enemy comes alive when the viewport is jolted. However, an uncalibrated or lingering shake causes motion sickness and disorientation. A good screen shake must be abrupt at its onset and decay rapidly in an exponential drop-off.

In Module 10, we learned how to configure a smooth follow camera using the view camera (`view_camera[0]`). To add shake without causing the camera to drift away from its target over time, we take the ideal target position (centered on the player) and apply a randomized offset that decays with each passing frame.

// Object: obj_camera
// Event: Create

target = obj_player;
cam = view_camera[0];
cam_w = camera_get_view_width(cam);
cam_h = camera_get_view_height(cam);

// Screen Shake variables
shake_magnitude = 0;   // Current shake strength in pixels
shake_remain = 0;      // Remaining decaying magnitude
shake_fade = 0.9;      // Multiplicative decay coefficient

To allow any entity in the game (the player, a projectile, or a boss) to trigger camera shake without needing direct access to camera internals, we create a global helper function or script called `screen_shake()`.

// Script: scr_screen_shake
// Callable from any event on any object

function screen_shake(_magnitude, _force_overwrite = false) {
    if (instance_exists(obj_camera)) {
        with (obj_camera) {
            // Overwrite if new shake is stronger or force overwrite is requested
            if (_magnitude > shake_remain || _force_overwrite) {
                shake_magnitude = _magnitude;
                shake_remain = _magnitude;
            }
        }
    }
}

Finally, in the Step (or preferably End Step) event of `obj_camera`, we calculate standard camera tracking and add the pseudo-random perturbation generated by `random_range()` scaled to the remaining shake magnitude.

// Object: obj_camera
// Event: End Step

if (instance_exists(target)) {
    // Ideal tracking destination without shake
    var _dest_x = target.x - (cam_w / 2);
    var _dest_y = target.y - (cam_h / 2);

    // Smooth camera tracking
    var _cur_x = camera_get_view_x(cam);
    var _cur_y = camera_get_view_y(cam);
    var _final_x = lerp(_cur_x, _dest_x, 0.1);
    var _final_y = lerp(_cur_y, _dest_y, 0.1);

    // Calculate shake offset
    var _offset_x = random_range(-shake_remain, shake_remain);
    var _offset_y = random_range(-shake_remain, shake_remain);

    // Decay remaining shake
    shake_remain = lerp(shake_remain, 0, 0.1);
    if (shake_remain < 0.1) shake_remain = 0;

    // Clamp to room bounds to prevent seeing outside the room
    _final_x = clamp(_final_x + _offset_x, 0, room_width - cam_w);
    _final_y = clamp(_final_y + _offset_y, 0, room_height - cam_h);

    camera_set_view_pos(cam, _final_x, _final_y);
}
