Volume Control and Audio Settings

Volume Control and Audio Settings in GameMaker

In previous lessons, you learned how to import and trigger sound effects using functions such as audio_play_sound, structure music loops, and generate dynamic particles to polish the retro feel of our 2D platformer. However, commercial-grade game audio requires more than simply triggering tracks: it demands giving the end user complete control over acoustic intensity. Displays, headphones, and player hearing preferences vary widely, and the lack of in-game volume settings is consistently one of the most cited criticisms in playtesting and user reviews.

The goal of this lesson is to equip our project with a robust, modular, and customizable audio architecture. We will explore GameMaker's audio hierarchy, learn to manipulate overall gain (master volume), and separate our mix between background music and sound effects. Finally, we will connect this logic to interactive visual elements within the Draw GUI event, enabling players to tweak volume levels smoothly using intuitive sliders and selectors.

The Concept of Gain and Mixing Hierarchy

In software development and digital audio engineering, the technical term for the relative volume of an audio signal is "gain". In GameMaker, gain is neither measured in decibels nor expressed as a direct 0 to 100 percentage. Instead, it is represented as a floating-point value typically ranging from 0.0 to 1.0:

To maintain a balanced mix in a commercial video game, audio files are never adjusted in isolation without a structured framework. Instead, we establish a mixing hierarchy that processes the audio signal through distinct stages before routing it to the user's physical speakers.

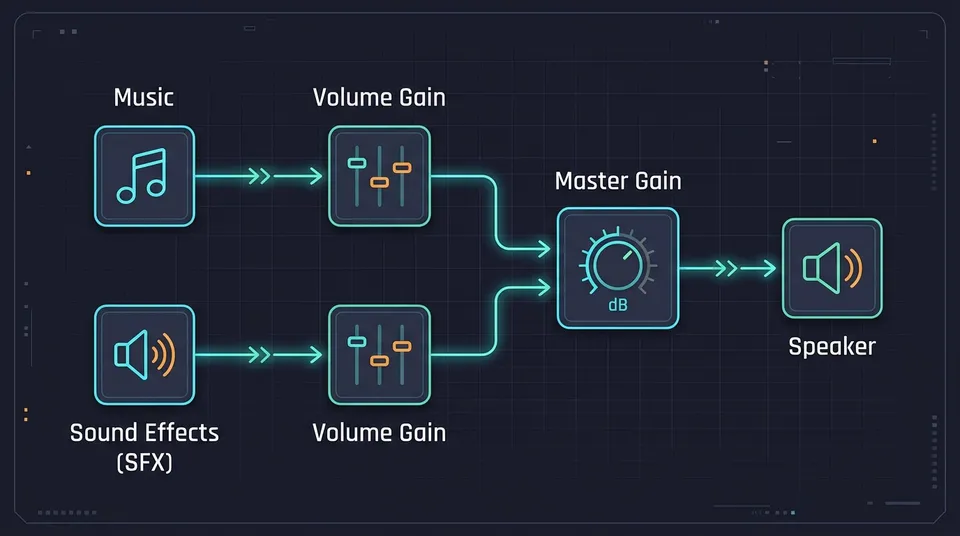

As the diagram illustrates, the final volume perceived by the player is the product of multiplying consecutive gain values. If a jump sound (`snd_salto`) plays at 0.8 gain, the SFX channel is set to 0.5, and the overall master volume is set to 0.5, the final effective gain for that jump will be 0.8 * 0.5 * 0.5 = 0.2 (20% of its nominal volume). Understanding this cascading multiplication prevents common clipping issues and accidental muting.

Native Gain Control Functions in GML

GameMaker provides a dedicated suite of built-in functions to control each tier of this hierarchy. Below are the core tools we will use to build our system:

1. **Master Control:** The `audio_master_gain(gain)` function defines the global volume ceiling for the entire application. It accepts a real value between 0.0 and 1.0. Updating this function immediately and proportionally scales every sound produced by GameMaker.

2. **Asset or Instance Control:** The `audio_sound_gain(index, gain, time)` function allows you to change the volume of a specific sound asset (`snd_salto`) or an active sound instance (the unique numerical sound ID returned by `audio_play_sound`). Its third argument, `time`, specifies an interpolation duration in milliseconds, making smooth fades possible without abrupt volume jumps.

3. **Audio Groups:** In intermediate and advanced projects, GameMaker allows grouping sound assets in the Asset Browser under discrete Audio Groups (e.g., `audiogroup_default`, `audiogroup_music`). Using `audio_group_set_gain(group, gain, time_ms)`, you can adjust the volume of all sounds assigned to that group simultaneously with a single line of code.

💡 Technical tip: While Audio Groups are best practice for large-scale games with disk streaming, in this lesson we will implement a hybrid controller based on global variables and instance-level gain controls. This ensures full educational clarity without requiring complex IDE asset preloading steps for learners taking their first steps.

Designing the Manager Object: obj_controlador_audio

To ensure player audio settings persist across different rooms in our platformer (from the title screen to deep cavern levels), we will build a persistent manager object. This object will centralize channel states and serve as the single point of entry for any audio requests in the game.

Follow these steps in your project:

1. In the **Asset Browser**, right-click the **Objects** group and select **Create -> Object**. 2. Name the object exactly `obj_controlador_audio`. 3. Check the **Persistent** checkbox. This ensures the object will not be destroyed when transitioning between rooms with `room_goto()`.

Next, let's initialize our configuration variables in the **Create** event of `obj_controlador_audio`. We will use global variables so any other object in the game (such as the player character jumping or an enemy taking damage) can easily query current audio levels if necessary.

// Create Event of obj_controlador_audio

// 1. Prevent duplicates if returning to the starting room
if (instance_number(obj_controlador_audio) > 1) {
    instance_destroy();
    exit;
}

// 2. Master gain variables (range 0.0 to 1.0)
global.volumen_maestro = 0.8;
global.volumen_musica  = 0.7;
global.volumen_sfx     = 1.0;

// Variable to track the currently playing background music
global.musica_actual_instancia = noone;
global.musica_actual_asset     = noone;

// Apply the master gain immediately to the engine
audio_master_gain(global.volumen_maestro);

// UI variables for on-screen slider interaction
slider_seleccionado = -1; // -1: none, 0: master, 1: music, 2: sfx

// Dimensions and margins for visual GUI controls
gui_slider_ancho = 200;
gui_slider_alto  = 16;

Handling duplicates with `instance_number(obj_controlador_audio) > 1` is an essential design pattern. When an object is persistent, returning to a room where the object was originally placed in the Room Editor would cause GameMaker to instantiate a duplicate copy. Destroying secondary instances immediately prevents duplicate audio triggers and memory leaks.

Creating Safe, Modular Playback Functions

To ensure music and sound effect volumes consistently respect the variables we just declared, we should avoid calling raw `audio_play_sound` functions with arbitrary values across multiple objects. A reliable software design pattern is to wrap playback logic inside dedicated script functions that automatically apply the correct gain at the exact moment of playback.

Create a new Script in the Asset Browser and name it `scr_audio_sistema`. Add the following modular code inside:

/// @function reproducir_sfx(sound_asset, prioridad)
/// @description Plays a sound effect applying global SFX gain.
/// @param {Asset.GMSound} _asset Sound asset identifier to play
/// @param {Real} _prioridad Playback priority (e.g., 1 to 10)
function reproducir_sfx(_asset, _prioridad) {
    var _instancia = audio_play_sound(_asset, _prioridad, false);

    // Apply the calculated gain immediately to the newly created instance
    audio_sound_gain(_instancia, global.volumen_sfx, 0);

    return _instancia;
}

/// @function reproducir_musica(sound_asset, tiempo_fade_ms)
/// @description Handles background music changes with fade support.
/// @param {Asset.GMSound} _asset Music asset to loop
/// @param {Real} _tiempo_fade_ms Transition fade time in milliseconds
function reproducir_musica(_asset, _tiempo_fade_ms) {
    // If requested track is already playing, do nothing
    if (global.musica_actual_asset == _asset && audio_is_playing(global.musica_actual_instancia)) {
        return;
    }

    // If previous music is playing, fade it out
    if (audio_is_playing(global.musica_actual_instancia)) {
        audio_sound_gain(global.musica_actual_instancia, 0, _tiempo_fade_ms);
        // Note: The engine will attenuate the track gradually
    }

    // Start new track at volume 0 for a smooth fade-in
    global.musica_actual_asset = _asset;
    global.musica_actual_instancia = audio_play_sound(_asset, 100, true);
    audio_sound_gain(global.musica_actual_instancia, 0, 0);

    // Transition to configured music volume
    audio_sound_gain(global.musica_actual_instancia, global.volumen_musica, _tiempo_fade_ms);
}

/// @function actualizar_volumenes_en_tiempo_real()
/// @description Updates master gain and active looping audio.
function actualizar_volumenes_en_tiempo_real() {
    // 1. Update engine-wide master gain
    audio_master_gain(global.volumen_maestro);

    // 2. If background music is looping, update its gain immediately
    if (audio_is_playing(global.musica_actual_instancia)) {
        audio_sound_gain(global.musica_actual_instancia, global.volumen_musica, 0);
    }
}

With these wrapper functions in place, updating audio calls across your codebase becomes clean and safe:

• Instead of writing `audio_play_sound(snd_salto, 1, false);` in the player object, call `reproducir_sfx(snd_salto, 1);`. • When collecting a coin or defeating an enemy, use `reproducir_sfx(snd_moneda, 2);`. • When loading a level or game room, set the stage with `reproducir_musica(snd_musica_nivel_1, 1000);` for a clean one-second fade-in.

Building the UI in Draw GUI

To make audio settings accessible to the player, we need an interface that visualizes all three channels (Master, Music, and SFX) and lets users adjust them using either a mouse or keyboard controls. As covered in Module 8, the **Draw GUI** event renders elements statically in screen coordinates, unaffected by camera scrolling or room dimensions.

We will render interactive sliders using GameMaker's vector primitives (`draw_rectangle`, `draw_set_color`) without needing dedicated sprite assets right away. This allows us to rapidly prototype and verify our math and logic.

Open `obj_controlador_audio` and add the **Draw GUI** event:

// Draw GUI Event of obj_controlador_audio

// Base coordinates on screen
var _base_x = 100;
var _base_y = 120;
var _espaciado_y = 60;

// Text appearance settings
draw_set_font(-1); // Use default font
draw_set_halign(fa_left);
draw_set_valign(fa_middle);

// Audio settings panel header
draw_set_color(c_white);
draw_text(_base_x, _base_y - 40, "AUDIO SETTINGS (Click & drag with mouse):");

// Temporary data structure to process all three channels in a clean loop
var _canales = [
    { nombre: "Master Volume: ", valor: global.volumen_maestro },
    { nombre: "Music (BGM):   ", valor: global.volumen_musica },
    { nombre: "Sound Effects: ", valor: global.volumen_sfx }
];

for (var i = 0; i < array_length(_canales); i++) {
    var _y_pos = _base_y + (i * _espaciado_y);
    var _nombre = _canales[i].nombre;
    var _val = _canales[i].valor;
    var _porcentaje_texto = string(round(_val * 100)) + "%";

    // 1. Draw channel label and percentage value
    draw_set_color(c_yellow);
    draw_text(_base_x, _y_pos - 15, _nombre + _porcentaje_texto);

    // 2. Draw slider track background (Dark Gray)
    draw_set_color(c_dkgray);
    draw_rectangle(_base_x, _y_pos, _base_x + gui_slider_ancho, _y_pos + gui_slider_alto, false);

    // 3. Draw filled bar based on current volume (Cyan)
    var _ancho_relleno = gui_slider_ancho * _val;
    draw_set_color(c_aqua);
    draw_rectangle(_base_x, _y_pos, _base_x + _ancho_relleno, _y_pos + gui_slider_alto, false);

    // 4. Draw outer border of slider track (White)
    draw_set_color(c_white);
    draw_rectangle(_base_x, _y_pos, _base_x + gui_slider_ancho, _y_pos + gui_slider_alto, true);

    // 5. Draw slider thumb knob
    var _tirador_x = _base_x + _ancho_relleno;
    draw_set_color(c_white);
    draw_rectangle(_tirador_x - 3, _y_pos - 4, _tirador_x + 3, _y_pos + gui_slider_alto + 4, false);
}

// Reset default drawing color
draw_set_color(c_white);
